亚洲人成无码一区二区 SKFBSD 50100 CG参数

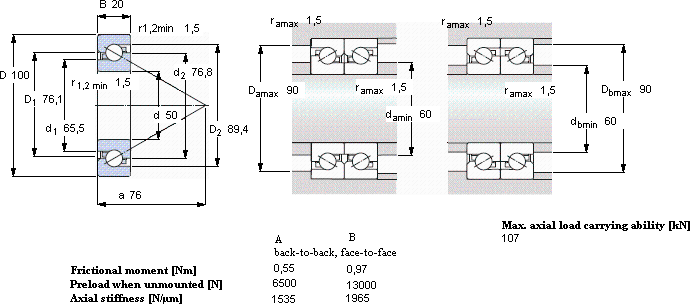

| 角接触推力球轴承 for screw drives, single direction | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | ||||||||||
| d | D | H | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 50 | 100 | 20 | 67 | 193 | 7,2 | 5600 | 6700 | 0,71 | BSD 50100 CG | BS 50/100 7P62U | |
SKFAngular contact thrust ball bearings for screw drivesBSD 50100 CG属于超高精密轴承，它是角接触推力球轴承 for screw drives, single direction的Angular contact thrust ball bearings for screw drives，内径：50，外径：100，厚度20，SKFBSD 50100 CG主要应用于燃气轮机、等领域。如果您需要购买或者了解更多关于SKFBSD 50100 CG的信息， 欢迎拨打订购热线：022-27921004
- SKFBSD 50100 CG近似型号
- SKF BSD 50100 CG 尺寸：50mm × 100 × 20 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBSD 50100 CG相关型号
- SKFBSA 305 CG 尺寸：25mm × 62 × 17 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBSA 204 CG 尺寸：20mm × 47 × 14 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBEAS 008032-2RS 尺寸：8mm × 32 × 20 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBSD 45100 CG 尺寸：45mm × 100 × 20 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBSD 4090 CG 尺寸：40mm × 90 × 20 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBEAS 008032-2Z 尺寸：8mm × 32 × 20 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBEAS 020052-2Z/PE 尺寸：20mm × 52 × 28 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBSA 210 CG 尺寸：50mm × 90 × 20 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBSD 4575 CG 尺寸：45mm × 75 × 15 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBSD 55120 CG 尺寸：55mm × 120 × 20 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
