亚洲人成无码一区二区 SKFBSD 3062 CG参数
| 角接触推力球轴承 for screw drives, single direction | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | ||||||||||
| d | D | H | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 30 | 62 | 15 | 28,5 | 71 | 2,65 | 8000 | 9500 | 0,22 | BSD 3062 CG | BS 30/62 7P62U | |

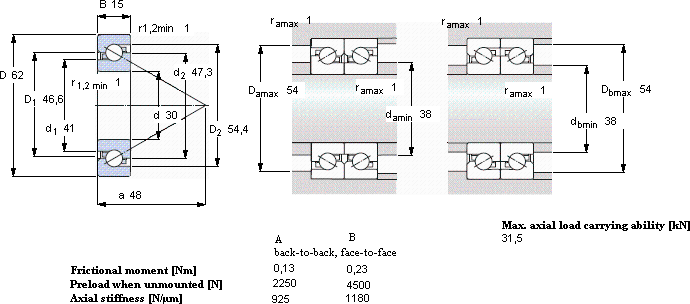

SKFAngular contact thrust ball bearings for screw drivesBSD 3062 CG属于超高精密轴承，它是角接触推力球轴承 for screw drives, single direction的Angular contact thrust ball bearings for screw drives，内径：30，外径：62，厚度15，SKFBSD 3062 CG主要应用于 燃气轮机、等领域。如果您需要购买或者了解更多关于SKFBSD 3062 CG的信息， 欢迎拨打订购热线：022-27921004
- SKFBSD 3062 CG近似型号
- SKF BSD 3062 CG 尺寸：30mm × 62 × 15 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKF 03062/03162/Q 尺寸：15.875mm × 41.275 × 14.288 类型：圆锥滚子轴承 备注：单列
- SKFBSD 3062 CG相关型号
- SKFBSD 60120 CG 尺寸：60mm × 120 × 20 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBSA 215 CG 尺寸：75mm × 130 × 25 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBSA 212 CG 尺寸：60mm × 110 × 22 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBEAS 020052-2RS 尺寸：20mm × 52 × 28 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBSD 45100 CG 尺寸：45mm × 100 × 20 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBSA 306 CG 尺寸：30mm × 72 × 19 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBSD 2047 CG 尺寸：20mm × 47 × 15 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBSA 203 CG 尺寸：17mm × 40 × 12 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBSA 210 CG 尺寸：50mm × 90 × 20 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKFBSD 2562 CG 尺寸：25mm × 62 × 15 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
