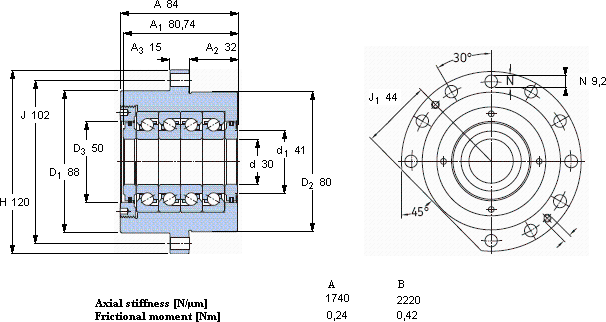

| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 30 | 80 | 84 | 46,455 | 142 | 5,3 | 4000 | 2000 | 3,5 | FBSA 206/ QFC | BSQU 230 TFT | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 206/ QFC属于超高精密轴承，它是角接触推力球轴承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，内径：30，外径：80，厚度84，SKFFBSA 206/ QFC主要应用于 大型农业机械、等领域。如果您需要购买或者了解更多关于SKFFBSA 206/ QFC的信息， 欢迎拨打订购热线：022-27921004
- SKFFBSA 206/ QFC近似型号
- SKF 2 x 7206 BECBM * 尺寸：30mm × 62 × 32 类型：角接触球轴承 备注：单列，用于配对安装
- SKF NUP 206 ECML * 尺寸：30mm × 62 × 16 类型：圆柱滚子轴承 备注：单列
- SKF 7206 BEP 尺寸：30mm × 62 × 16 类型：角接触球轴承 备注：单列
- SKF YAR 206-104-2F/AH 尺寸：31.75mm × 62 × 38.1 类型：Y-轴承 备注：带平头螺钉锁定的
- SKF 2206 E-2RS1 KTN9 + H 306 C 尺寸：25mm × 62 × 20 类型：自调心球轴承 备注：带紧定套
- SKF YAR 206-103-2FW/VA228 尺寸：30.163mm × 62 × 38.1 类型：Y-轴承 备注：用于高温
- SKF 3206 ATN9 * 尺寸：30mm × 62 × 23.8 类型：角接触球轴承 备注：双列
- SKF RNA 2206.2RS 尺寸：35mm × 62 × 19.8 类型：滚轮轴承 备注：不带法兰圈支承滚子，无内圈
- SKF 6206-2RZ * 尺寸：30mm × 62 × 16 类型：深沟球轴承 备注：单列
- SKF YAT 206-102 尺寸：28.575mm × 62 × 31 类型：Y-轴承 备注：带平头螺钉锁定的
- SKFFBSA 206/ QFC相关型号
- SKFFBSA 210 A/ QFC 尺寸：50mm × 128 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ QBC 尺寸：25mm × 80 × 82 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ QFC 尺寸：25mm × 80 × 82 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208 A/ QBC 尺寸：40mm × 128 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ QBC 尺寸：35mm × 90 × 86 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DB 尺寸：45mm × 124 × 66 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 212 A/ QBC 尺寸：60mm × 145 × 114 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ DF 尺寸：35mm × 90 × 52 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QBC 尺寸：20mm × 60 × 77 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210 A/ QBC 尺寸：50mm × 128 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
