亚洲人成无码一区二区 SKFFBSA 205/ DF参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||

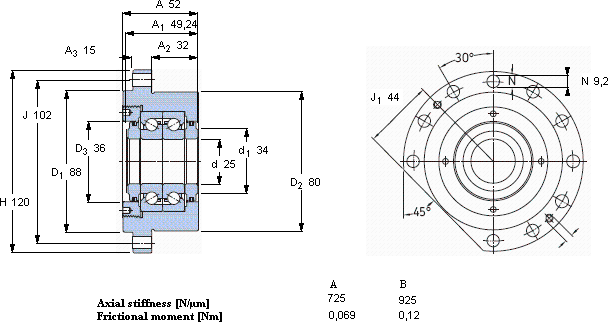

| 25 | 80 | 52 | 22,4 | 52 | 1,93 | 7200 | 3600 | 2,3 | FBSA 205/ DF | BSDU 225 FF | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 205/ DF属于超高精密轴承，它是角接触推力球轴承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，内径：25，外径：80，厚度52，SKFFBSA 205/ DF主要应用于机床主轴、等领域。如果您需要购买或者了解更多关于SKFFBSA 205/ DF的信息， 欢迎拨打订购热线：022-27921004
- SKFFBSA 205/ DF近似型号
- SKF 7205 ACD/P4A 尺寸：25mm × 52 × 15 类型：Angular contact ball bearings 备注：角接触球轴承, 精密
- SKF 22205 E * 尺寸：25mm × 52 × 18 类型：球面滚子轴承 备注：圆柱和圆锥孔
- SKF BSA 205 CG 尺寸：25mm × 52 × 15 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKF 6205/HR22Q2 尺寸：25mm × 52 × 15 类型：工程产品 备注：聚合物球轴承,单列球轴承
- SKF 6205 ETN9 尺寸：25mm × 52 × 15 类型：深沟球轴承 备注：单列
- SKF YEL 205-100-2FCW 尺寸：25.4mm × 52 × 15 类型：Y-轴承 备注：带偏心锁定环的
- SKF 6205-ZNR * 尺寸：25mm × 52 × 15 类型：深沟球轴承 备注：单列，带止动环槽
- SKF 2205 E-2RS1KTN9 尺寸：25mm × 52 × 18 类型：自调心球轴承 备注：圆柱孔和圆锥孔
- SKF YEL 205-015-2FCW 尺寸：23.813mm × 52 × 15 类型：Y-轴承 备注：带偏心锁定环的
- SKF 2 x 7205 BEGBY 尺寸：25mm × 52 × 30 类型：角接触球轴承 备注：单列，用于配对安装
- SKFFBSA 205/ DF相关型号
- SKFFBSA 209/ QFC 尺寸：45mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210 A/ QFC 尺寸：50mm × 128 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ QFC 尺寸：35mm × 90 × 86 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ DF 尺寸：20mm × 60 × 47 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QBC 尺寸：40mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QFC 尺寸：40mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206 A/ QBC 尺寸：30mm × 88 × 86 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ QBC 尺寸：35mm × 90 × 86 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QFC 尺寸：20mm × 60 × 77 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QBC 尺寸：20mm × 60 × 77 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
